Deep packet inspection (DPI) and identifying patterns

Deep Packet Inspection (DPI)?

DPI is a method of packet filtering that inspects the entire content of data packets, including:

• Packet Headers: Source/destination IP, port numbers, protocol information.
• Packet Payloads: The actual data content being transmitted (e.g., files, messages).

How DPI Works:

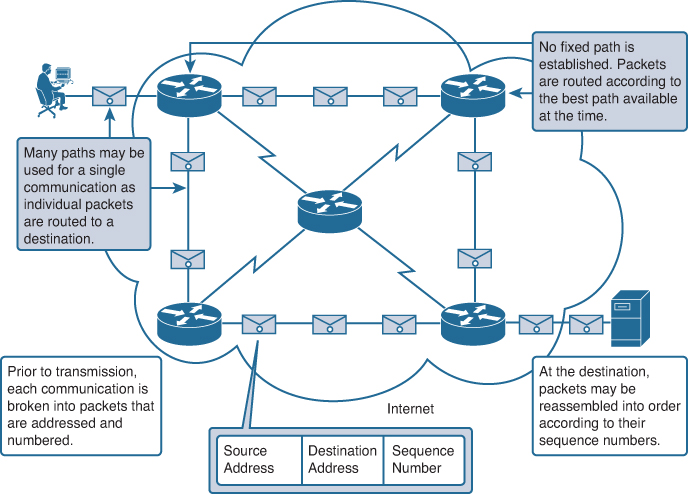

In a digital-first world, each and every piece of digital information transmitted over the internet is delivered in small bundles of data, called packets. This includes emails, messages you've sent via apps, websites you've accessed, video calls and much more.

These data packets contain the information itself as well as metadata identifying traffic source, content, destination, and other valuable details. To ensure that data is routed to the proper destination, a process called packet filtering monitors and manages the data, as well as network traffic patterns in real time.



1. Packet Capture: Captures network traffic as it traverses through a device like a router, firewall, or intrusion detection system (IDS).
2. Inspection:
   • Analyzes protocols (HTTP, FTP, DNS, etc.).
   • Looks for signatures, keywords, or data patterns within payloads.
3. Classification: Identifies the type of traffic (e.g., applications, protocols, threats).
4. Action: Based on predefined rules, DPI can allow, block, or log the traffic.



---

Applications of DPI

1. Network Security:
   • Identifying malware, phishing attempts, or data exfiltration attempts.
   • Preventing Distributed Denial-of-Service (DDoS) attacks by filtering malicious traffic.
2. Application Identification:
   • Detecting and categorizing applications (e.g., video streaming, VoIP, social media).
   • Enforcing application-specific Quality of Service (QoS) policies.
3. Intrusion Detection and Prevention:
   • Identifying attack signatures or anomalous traffic patterns.
   • Blocking unauthorized or suspicious payloads.
4. Compliance and Monitoring:
   • Ensuring adherence to regulatory policies by monitoring sensitive data transmission.
   • Detecting the use of prohibited applications or services.
5. Content Filtering:
   • Blocking inappropriate websites or content.
   • Monitoring employee activities for compliance.



---

Identifying Patterns with DPI

DPI leverages pattern-matching techniques to detect specific data or behaviors within packet payloads. The following methods are commonly used:

a. Signature-Based Detection

• Compares packet content against a database of known attack signatures or malware patterns.
• Example: Detecting a specific exploit by recognizing its payload structure.

b. Protocol Anomaly Detection

• Identifies deviations from standard protocol behaviors (e.g., malformed DNS requests or non-standard HTTP headers).
• Example: Flagging traffic that doesn’t conform to the HTTP standard.

c. Heuristic Analysis

• Uses rule-based algorithms to identify suspicious traffic patterns based on behavioral characteristics.
• Example: Detecting repeated login attempts (indicative of brute force attacks).

d. Regular Expression Matching

• Employs regex patterns to locate specific strings or sequences in packet data.
• Example: Searching for credit card numbers or Social Security numbers in payloads.

e. Deep Learning and AI

• Advanced DPI systems use machine learning to identify patterns and anomalies that may not have pre-defined signatures.
• Example: Detecting zero-day attacks through behavior-based analysis.



---



DPI Tools and Technologies

Popular DPI tools and platforms include:

• Firewalls with DPI: Palo Alto Networks, Fortinet, Cisco Firepower.
• Intrusion Detection/Prevention Systems (IDS/IPS): Snort, Suricata, Zeek.
• Traffic Monitoring Tools: Wireshark, SolarWinds, NetFlow Analyzer.
