Ethernet Cabling- Straight and Crossover
IDENTIFY NETWORKING CABLE STANDARD . CREATE AND TEST CROSS OVER AND STRAIGHT THROUGH.
|
Category |
Shielding |
Maximum Transmission Speed (at 100m) |
|
Cat 5 cable |
unshielded> |
10/100 Mbps |
|
Cat 5e cable |
unshielded |
1000 Mbps / 1 Gbps |
|
Cat 6 cable |
shielded or unshielded |
1000 Mbps / 1 Gbps |
|
Cat 6a cable |
shielded |
10000 Mbps/ 10 Gbps |
Straight through cables are primarily used for connecting unlike devices.
And crossover cables are use for connecting like devices.
Use straight through cable for the following cabling:
- Switch to router
- Switch to PC or server
- Hub to PC or server
Use crossover cables for the following cabling:
- Switch to switch
- Switch to hub
- Hub to hub
- Router to router
- Router Ethernet port to PC NIC
- PC to PC
Equipment
• Two 0.6 to 0.9m (2 to 3 ft.) lengths of cable, Category 5 or 5e
• A minimum of four RJ-45 connectors (more may be needed if mis-wiring occurs)
• An RJ-45 crimping tool
• Two computers with Windows 7, Windows Vista, or Windows XP.
• Wire cutters • Wire stripper
Steps
1. Cut the cable to about a 3 foot length.
2. Remove the outer plastic covering using a wire stripper. Make sure to cut the right length by using the connector for reference.
3. Separate the wires apart from each other making sure to only untwist the pairs as far as necessary.

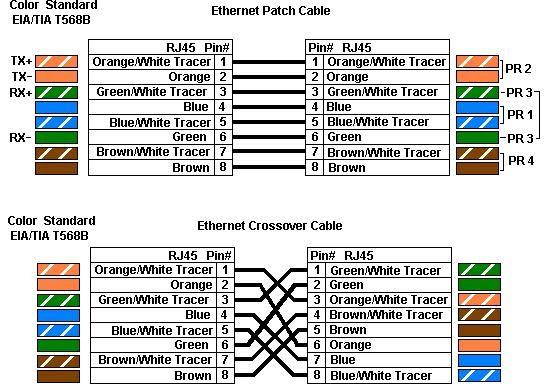

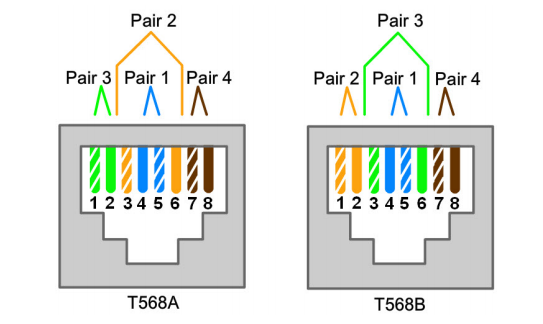

4. Arrange the wires according to the diagram given.
5. Insert the wires into the connector making sure the wires stay in the intended order.
6. Use the crimp tool to secure the wires in the connector. Once crimped, visually inspect connector and use pull test to check crimp.
7. Repeat steps 2-6 on the opposite end of the cable.
8. Insert ends into the cable tester to check cable.
